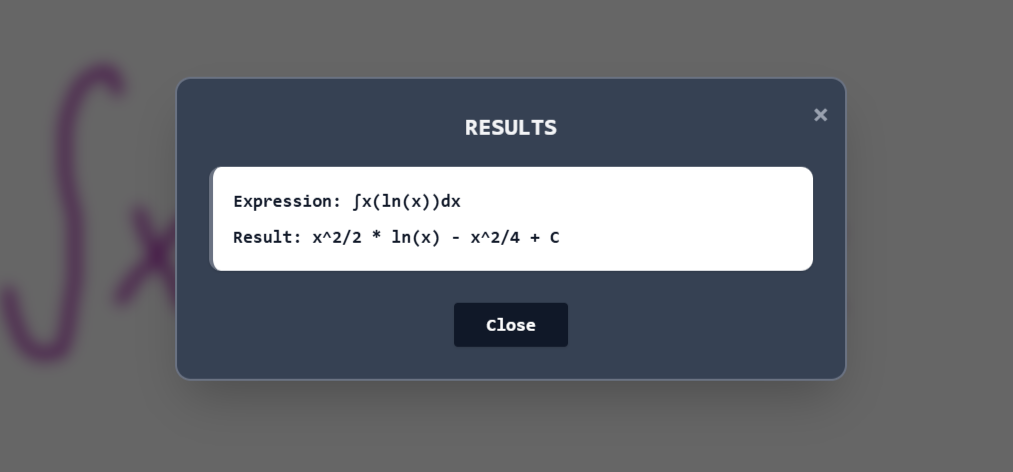

📝 Integration by Parts (Sample Problem):#
🎨 Project Overview#
AI Paint Calculator is a fully functional web app that lets users draw math, geometry, calculus, or physics problems directly on a digital canvas—and get instant AI-powered answers. Built using ReactJS, TailwindCSS, and a Python FastAPI backend, this app turns freehand problem-solving into an intuitive and creative experience.
This project showcases how canvas-based drawing, FastAPI inference serving, and responsive frontend design can come together into a powerful educational tool.
✨ Key Features#
- 🖌️ Brush & Eraser Tools
- 🎛️ Size & Color Selection
- 🪣 Background Color Fill
- 🔄 Undo / Redo Stack
- 💾 Save / Load from Local Storage
- 🖼️ Download Drawing as Image
- 🤖 Send to Gemini AI via Python FastAPI backend
- 🧠 Solves Math, Geometry, Calculus, Physics Problems
- 📱 Responsive Layout with Burger Menu for Small Screens
📷 Screenshots#

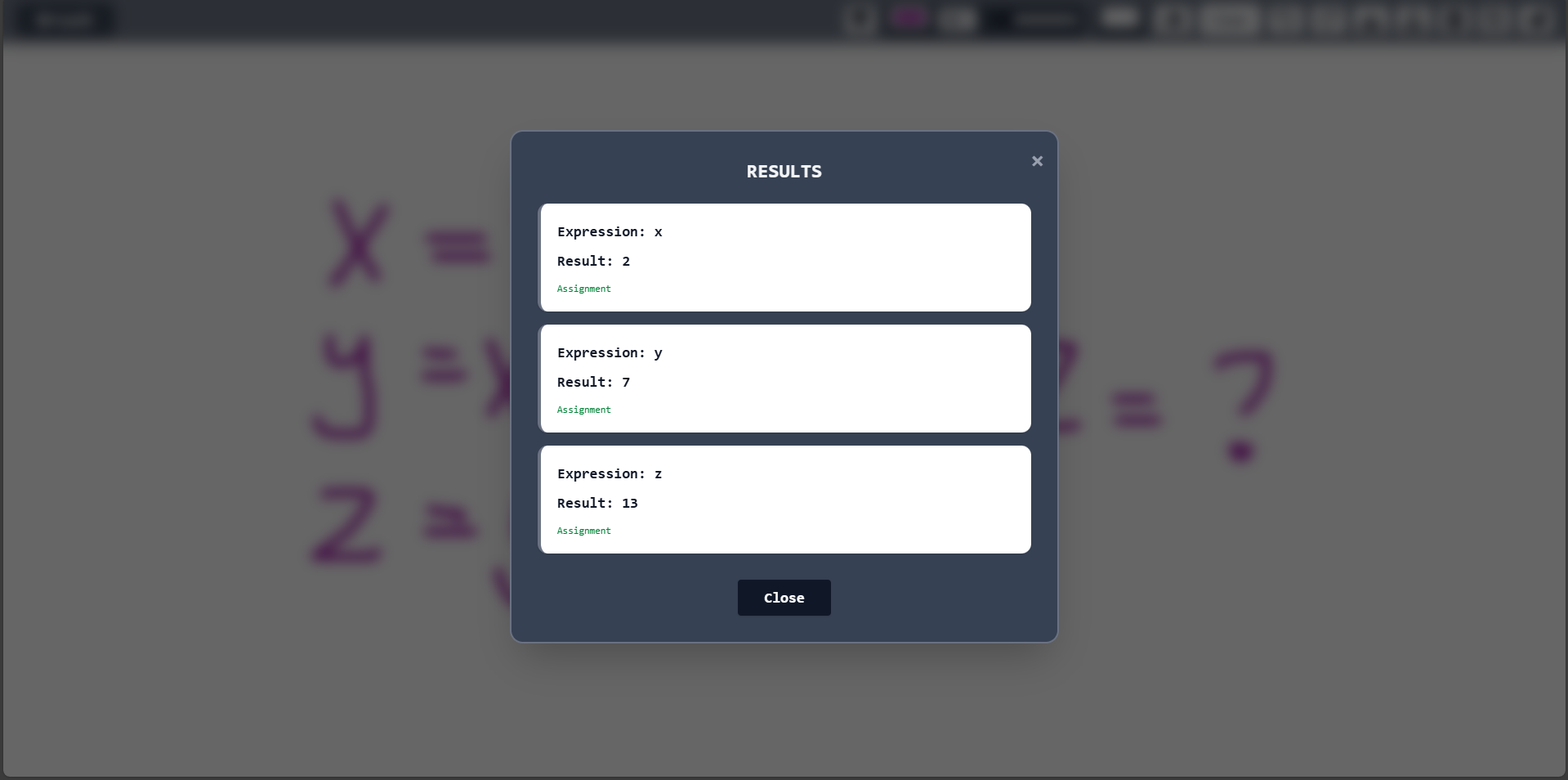

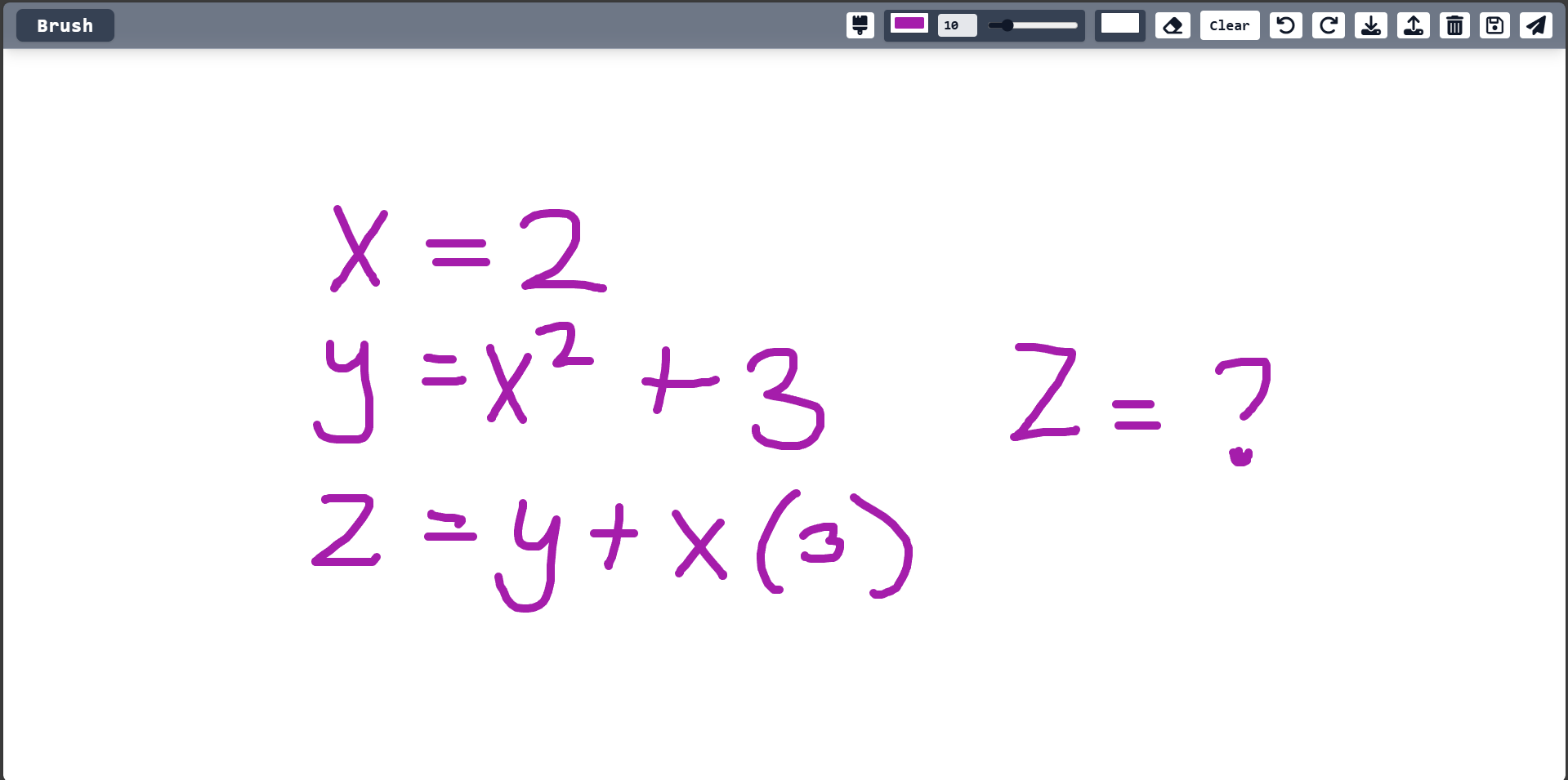

Math Expression Recognition#

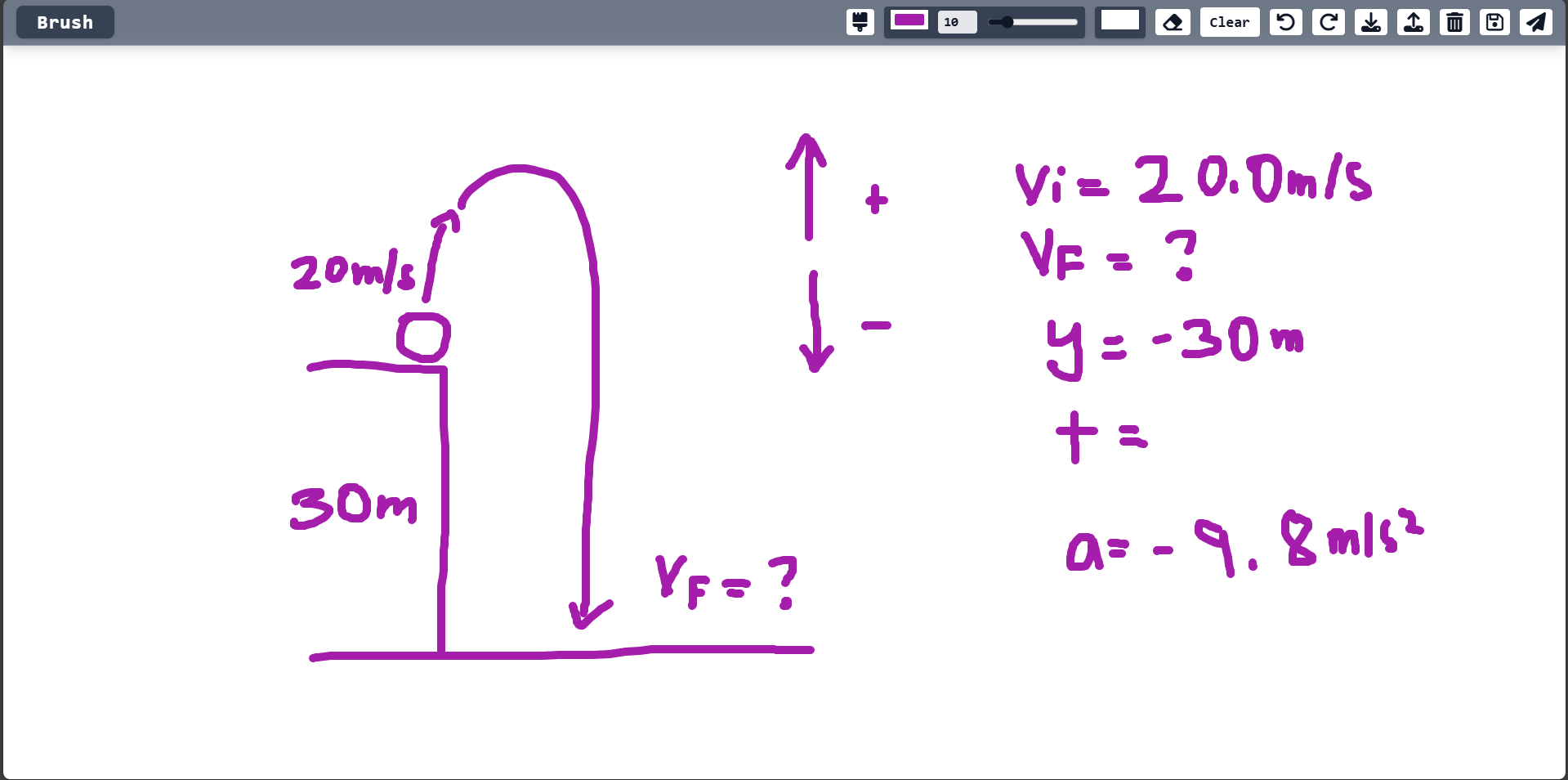

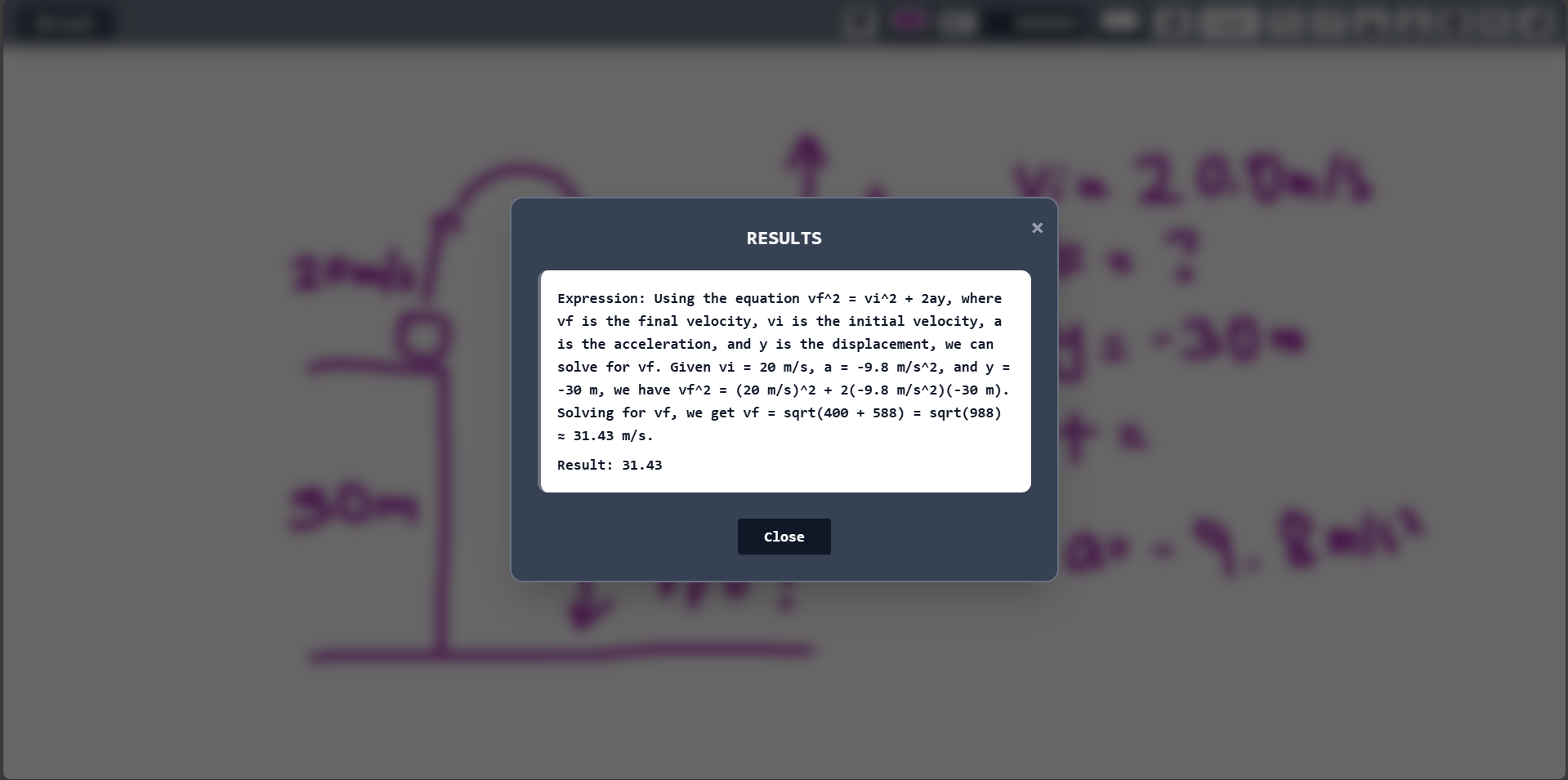

Physics Diagram Solving#
🧠 What It Can Solve#
- Algebra & Arithmetic: Variable assignment, equations, PEMDAS
- Geometry: Labeled diagrams, area, perimeter, angles
- Calculus: Derivatives, integrals, limits
- Physics: Force diagrams, motion, vectors
🛠️ Tech Stack#
| Component | Technology |
|---|---|
| Frontend | React + Tailwind CSS |
| Build Tool | Vite |
| Backend | Python (FastAPI) |
| AI Integration | Google Gemini API |
| Drawing Engine | HTML5 Canvas |
| State Mgmt | React Hooks + Refs |
| Extra UI | FontAwesome, Color Pickers |
🧩 File Structure#
AI-Paint-Calculator/
├── api/
│ ├── main.py
│ ├── requirements.txt
├── public/
├── src/
│ ├── assets/
│ ├── components/
│ │ ├── TopBar.jsx
│ │ ├── CanvasArea.jsx
│ │ ├── ColorPickerPopover.jsx
│ │ └── Modal.jsx
│ └── App.jsx
├── index.html
├── package.json
└── tailwind.config.js
🚀 Getting Started#
1. 🧠 Start the AI Backend (Python FastAPI)#
Make sure you have Python 3.10+ installed. Then:
cd api
pip install -r requirements.txt
python main.py
This runs the FastAPI server on http://localhost:8000, using uvicorn.
⚠️ Keep the server running — the React frontend will communicate with it.
2. 🎨 Start the React App#
Open a new terminal in the root project directory:
npm install
npm run dev
Then visit http://localhost:5173 in your browser.
3. 🔧 Build for Production#
npm run build
🔮 Future Enhancements#
- ✍️ Improved handwriting recognition model
- 📱 Mobile-friendly drawing interactions
- 🧾 Math history & export to PDF
- 🌐 Language selection (multilingual)
- 🎓 Learning mode with hints and steps
💬 Final Thoughts#
This project merges art, AI, and education—allowing anyone to interact with math in a fun and intuitive way. Whether it’s for students, teachers, or curious learners, the AI Paint Calculator is a demonstration of what’s possible with modern web technologies and AI integration.
